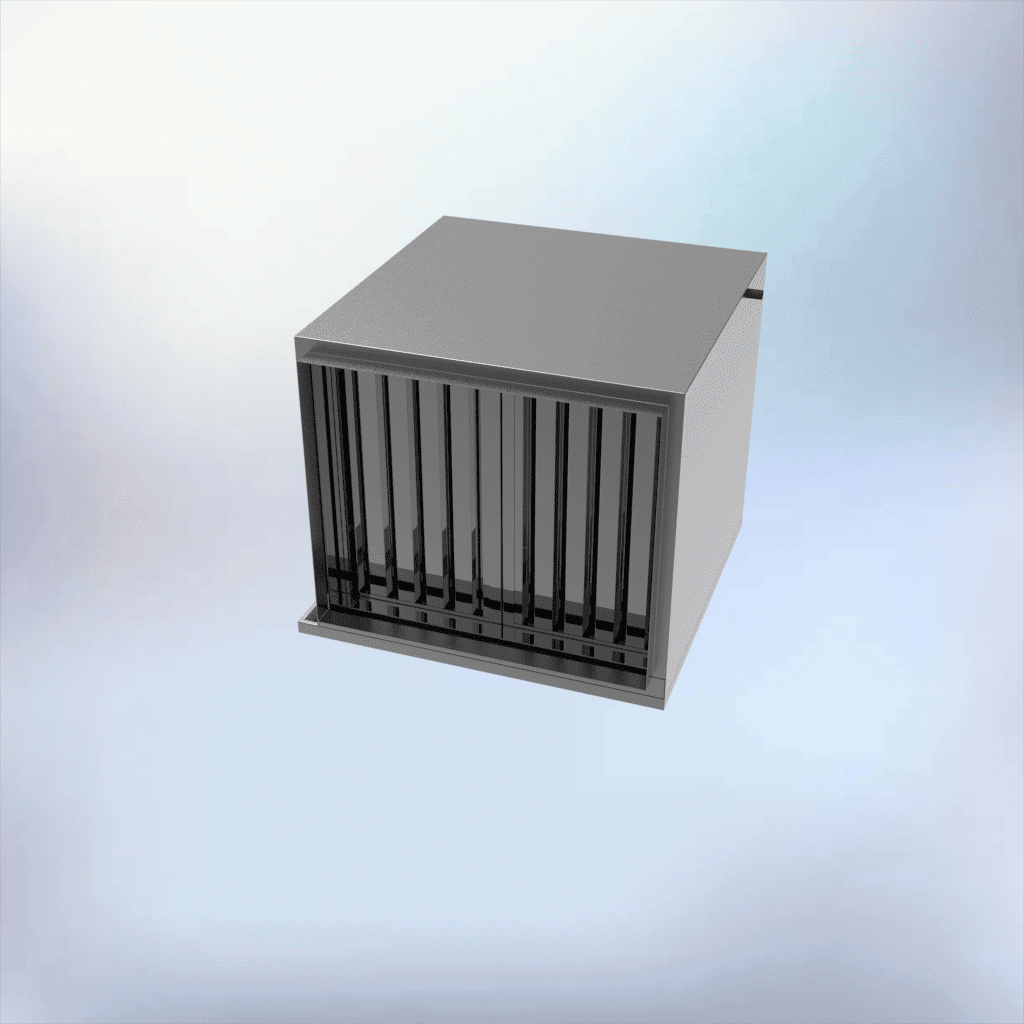

The Aqua Mist System is a high-performance water misting unit designed to provide reliable cooling, humidification, and dust suppression in commercial and industrial environments. With precision water control, compact construction, and durable components, it’s a perfect fit for kitchens, food storage areas, greenhouses, or outdoor spaces requiring fine misting technology.

---

🔧 Key Features:

✅ Efficient Water Control
Equipped with a ½” IN/OUT water connection and control cabinet for precise water regulation and easy integration into existing water systems.

✅ Optimal Pressure Performance
Supports a maximum inlet pressure of 15 bar, with recommended nozzle pressure of 2 bar, ensuring consistent misting for optimal results.

✅ Low Water Consumption
Consumes just 0.64 liters per minute at 2 bar, making it both eco-friendly and cost-effective.

✅ Reliable Temperature Control
With a temperature handling range of 0–60°C, the system works efficiently across different environmental conditions.

✅ Compact & Durable Design
The unit has a sturdy build with dimensions of 800 x 730 x 800 mm and a total weight of 53 kg, ideal for compact spaces and heavy-duty usage.

✅ Easy Power Connectivity
Runs on a standard 220V / 50Hz power supply, simplifying installation without special electrical requirements.

---

📐 Technical Specifications:

• Water Connections (Cabinet): ½ inch

• Water IN / OUT: ½ inch / ½ inch

• Power Supply: 220V / 50Hz

• Unit Dimensions (WxHxD): 800 x 730 x 800 mm

• Weight: 53 kg

• Max. Network Water Pressure: 15 bar

• Recommended Pressure at Nozzles: Max. 2 bar

• Water Consumption at 2 bar: 0.64 l/min

• Temperature Range: 0–60°C (with control valve)
